Plasma Cutting Torches

Plasma Cutting Torches
Plasma Cutting Torches
Product Code : ABICUT 75 A
Product Description

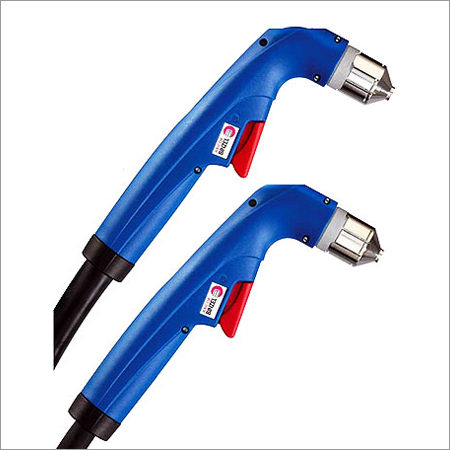

PLASMA Cutting Torches ABICUT Air Cooled

  • Ergonomic designed, short handle - optimal handling.
  • Innovative trigger guard - for safe operating.
  • Positive trigger action - comfortable functioning.
  • Robust construction and optimal cooling - long lifetime of torch and wear parts.
  • Contact ignition reduces costs for thermal cutting.
  • Compatible with all popular plasma cutting power sources.
  • Shock resistance shield cap from special material.
  • Two stage distance shield for best for best cutting results in high and low amp area.
  • Optional with coaxial cable.
  • Optional in HF version.

Technical Specifications (EN 60 974-7)

Type of cooling

Air cooled

Pilot current

15-22A (max. 25A)


75 A (at 60% Duty cycle)

Type of Gas

Compressed air

Gas flow

Approx. 135 l/min

Working Pressure

5-5.5 bar

Air value defined with nozzle size 1.2mm

Plasma air

Approx. 25 l/min

Soft start air

>12 l/min

Gas post flow

>60 sec

Type of ignition


Gas Supply

Compressed air both for plasma and cooling gas

Ignition voltage

7 KV (HF)

Cutting thickness

20mm at 75A depending on material to be cut and power source
