Cold Wire Feeder System

Cold Wire Feeder System
Cold Wire Feeder System
Product Code : 18
Product Description

We are a noteworthy organization in the domain, engaged in offering an excellent range of Cold Wire Feeder System. At vendor end, our offered system is manufactured using optimum grade material and sophisticated technology in synchronization with international standards. These Cold Wire Feeder Systems can also be availed in various sizes and other related specifications. Moreover, these products are properly examined by our quality experts upon distinct parameters of quality.

Features:

  • Sturdiness
  • Needs less maintenance
  • Precise dimensions
  • High durability

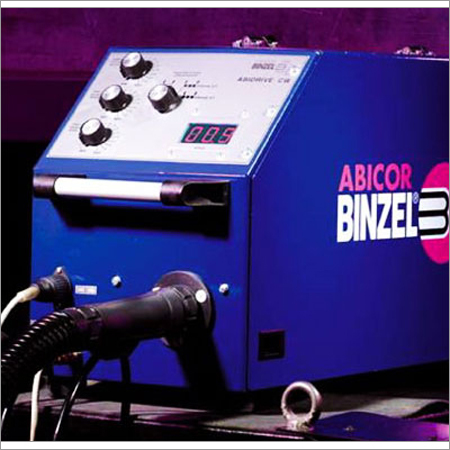

The ABIDRIVE-CW cold wire feeding system - especially developed for the industrial use - cares for optimal and constant wire feeding. To utilize for hand operated and automated TIG cold wire welding.

Due to the customized intermediate cable assemblies the ABIDRIVE-CW wire feeding system is easey to adopt to serval air and liquid cooled TIG power source without any difficulty.

The ABICOR BINZEL welding torches from the ABITIG series with cold wire feed and integrated control module inside the handle will complete the system.

  • Selective 2 - or 4-T mode
  • Interval mode
  • Free selection of welding and brake times
  • Feeding speed 0 - 10 m/min
  • Four roll drive (toothed)
  • Soft start

Technical Specifications

Feeding unit


Weight

19 Kg

Measurement (lxwxh)

Approx 580x280x380m

Wire feeding speed

0-10 m/min

Standard drive rolls

0.8-1.2mm

Power supply


Weight

7.5 kg

Measurement (lxwxh)

Approx. 185x200x175mm

Inlet voltage

230V/50Hz

Power consumption

40W/50Hz

Power input

0.15 KVA

Interval frequency

Approx. 0.5 Hz

Protection class

IP 21
